Setting up the TP Link Omada Captive Portal

  1. Overview
  2. WiFi Hardware
  3. Setting up the TP Link Omada Captive Portal
TP Link Omada (v4)
Access Point Instructions for TP Link Omada (v4)
If you are hosting the Omada controller with a cloud service provider such as Hubox (not TP Link Clould), please ignore this note
Please ensure all ports are open for the Omada Controller see help center below https://www.tp-link.com/us/support/faq/3281/ the Captive WiFi server will directly authenticate the user to the Omada Controller
  • Create a new network
  • After that, create a new captive portal, with vendor TP Link Omada v4
  • Access Point Configuration
  • Configure the Captive Portal under Settings -> Authentication -> Portal.
  • Create New Portal
  • Toggle on the Portal
  • Authentication Timeout - (your choice of time for the WiFi expiry time)
  • NAS ID - (** Use your venue name in one word ie: SohoSushi)
  • Authentication Type = RADIUS Server
  • Radius profile, + Create a new Radius profile
    • Name - captivewifi_radius (or whatever you wish)
    • VLAN Assignment - Disabled
    • Authentication Server IP - get this value from Captive WiFi Support
    • Authentication Port -  1812
    • Authentication Password -  get this value from Captive WiFi Support
    • Radius Accounting - Disabled
  • Press Save
  • Use the following values:
    • Authentication Mode - PAP
  • Portal Customisation - External Web Portal - https:// getonline.captivewifi.io/guest/<site id>
    • You can get the Site ID from the Captive WiFi portal under integrations and WiFi Hardware
  • HTTPS Redirection (Do not enable)
  • Landing Page
    • You can get the Landing Page from Manage Venue and copy the URL link from Unique ID
    • Pop over to the Captive WiFi dashboard and paste in your Promotional URL
  • Press Save
  • Select Access Control
    • Enable Pre-Authentication Access
    • Add the following URLs
      • getonline.captivewifi.io
      • captivewifi.fra1.digitaloceanspaces.com
  • Click Apply
Head over to the Captive WiFi Dashboard to complete the integration
  • Select Integrations
  • WiFi Hardware
  • Ensure Omada is selected

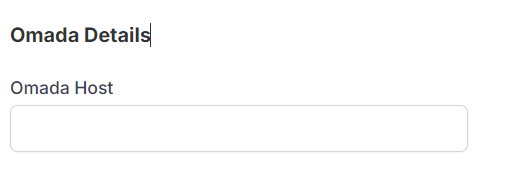

  • Insert the Omada server (no http or port number please) this must be the EXTERNAL IP Address of your venue
  • NOTE: You must have a static IP, if this is not an option please host your controller at www.hubox.co
